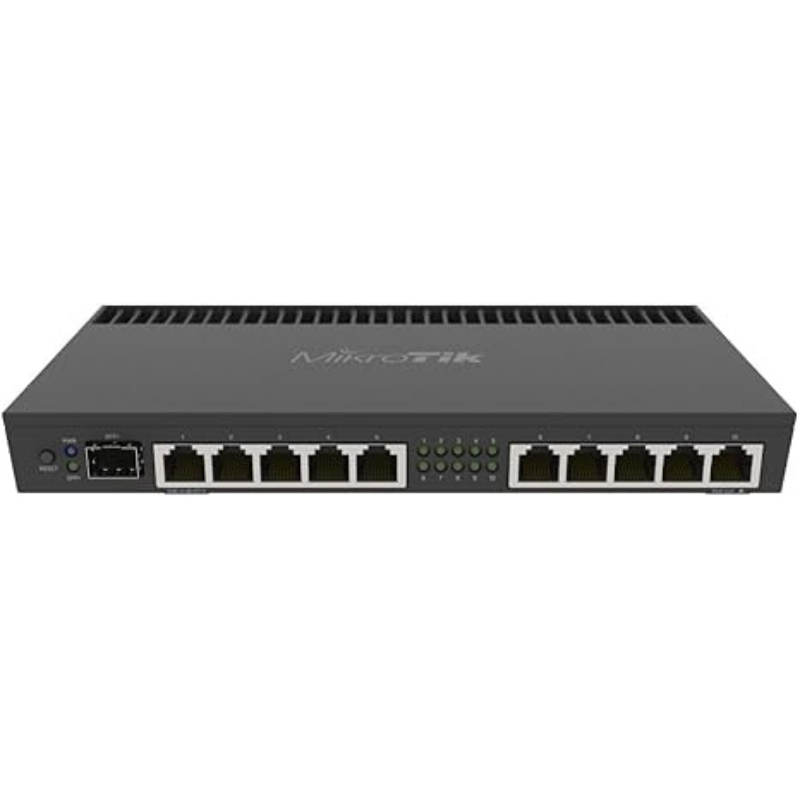

MikroTik RB4011 Ethernet 10-Port Gigabit Router
Short Description
The MikroTik RB4011 is a high-performance enterprise-grade wired router designed for demanding networks. It features 10 Gigabit Ethernet ports, a powerful quad-core CPU, and a 10G SFP+ interface, making it ideal for ISPs, businesses, and advanced home networks.
Key Features & Highlights
- 10× Gigabit Ethernet ports for high-speed wired connectivity
- 1× SFP+ (10Gbps) port for fiber uplink or backbone connections
- Quad-core ARM Cortex-A15 CPU (1.4 GHz) for powerful processing
- 1GB RAM + 512MB NAND storage for stable multitasking
- RouterOS (Level 5 license) with advanced routing features
- IPsec hardware acceleration for fast VPN performance
- Passive PoE in & PoE out (port 10) for flexible power options

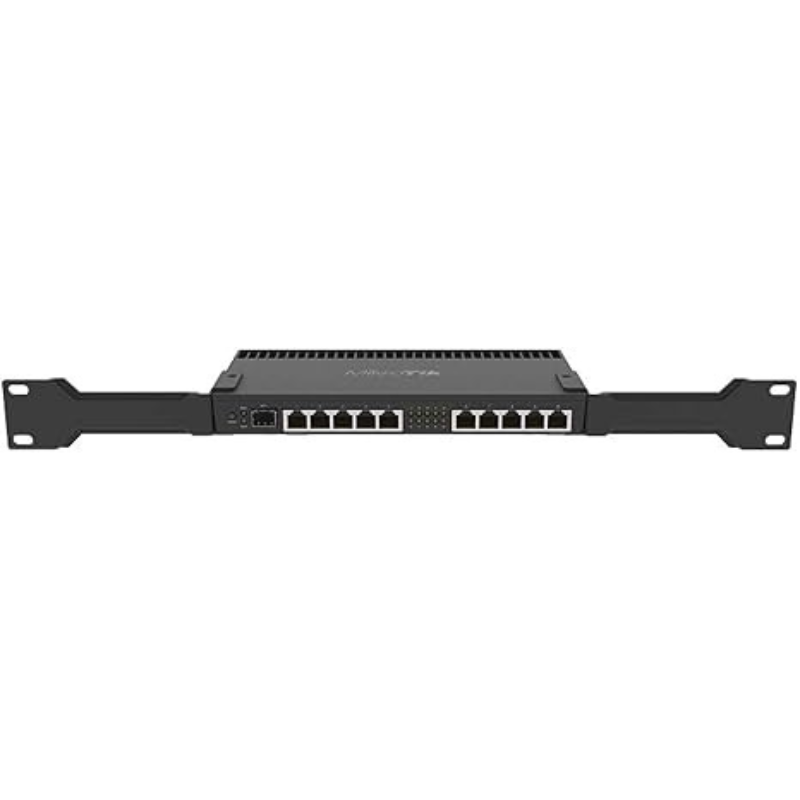

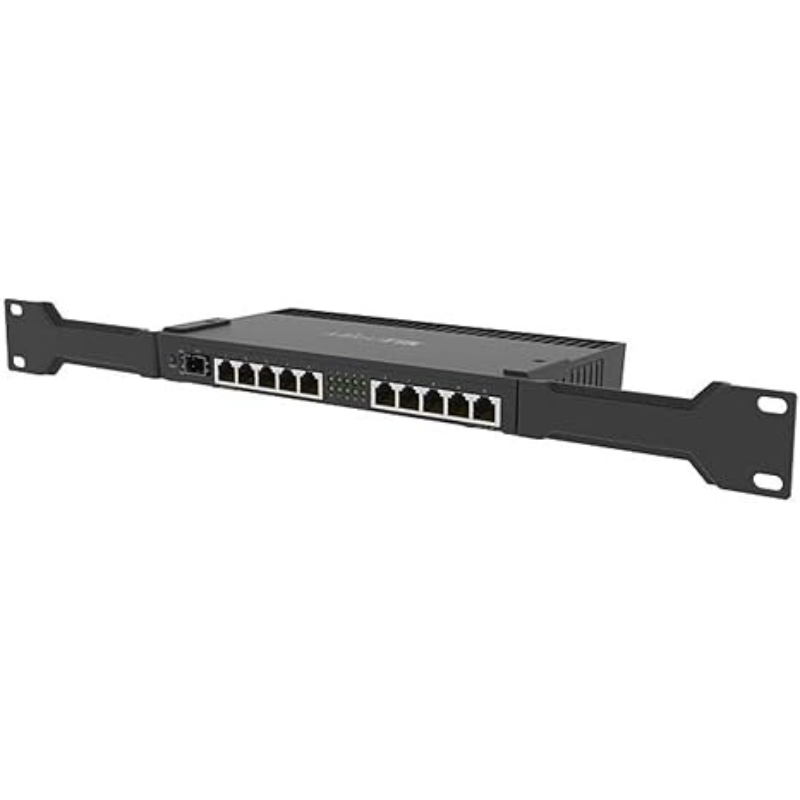

- Rackmount (1U) metal enclosure for professional setups
- Fanless passive cooling for silent operation
Uses / Applications
- Enterprise and corporate networks
- Internet Service Providers (ISPs)
- Data centers and server rooms
- Advanced home or lab networking
- VPN concentrator (IPsec, OpenVPN)
- Network segmentation (VLANs, MPLS, BGP, OSPF)
Product Overview
The MikroTik RB4011 series is built to deliver carrier-grade routing performance at an affordable cost. It uses a powerful ARM-based CPU, enabling multi-gigabit throughput and advanced network control.
With 10 Ethernet ports + 10G SFP+, it can act as both a core router and aggregation device, while RouterOS provides full control over routing, firewall, QoS, and VPN configurations.
Specifications (Technical Table)
| Category | Details |
|---|---|
| Model | RB4011iGS+RM |
| CPU | Quad-core ARM Cortex-A15 (AL21400) |
| CPU Speed | 1.4 GHz |
| RAM | 1 GB |
| Storage | 512 MB NAND |
| Ethernet Ports | 10 × 10/100/1000 Mbps |
| SFP+ Port | 1 × 10 Gbps |
| Operating System | MikroTik RouterOS (Level 5) |
| Throughput | Up to ~7.5 Gbps |
| PoE Input | Passive PoE (Port 1) |
| PoE Output | Port 10 (up to 57V) |
| Power Input | 12–57V DC (dual input) |
| Max Power Consumption | ~33W |
| Cooling | Passive (fanless) |
| Mounting | Rackmount (1U) |
| Dimensions | 228 × 120 × 30 mm |
| Operating Temp | -40°C to +70°C |
Technical Information
- Architecture: ARM 32-bit platform optimized for routing performance
- Switch chip: RTL8367SB for Ethernet switching
- VPN Support: IPsec hardware acceleration, OpenVPN, L2TP
- Routing Protocols: BGP, OSPF, MPLS
- Management: CLI, WinBox, Web UI
- Security: Firewall, ACLs, traffic filtering
- Reliability: High MTBF (~200,000 hours)
Summary
The MikroTik RB4011 is a powerful, cost-effective wired router offering enterprise-level performance, advanced routing features, and 10G connectivity. It’s ideal for business networks, ISPs, and advanced users who need high throughput, flexibility, and strong VPN/security capabilities.
👉 Conclusion:
High performance + 10G capability + advanced RouterOS control = excellent value for professional networking.
