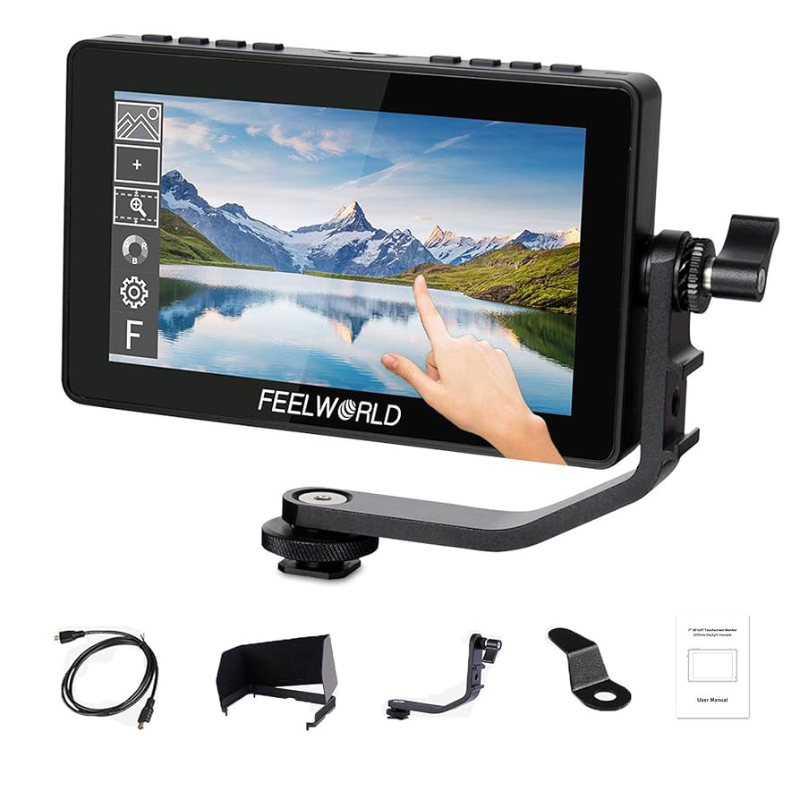

FeelWorld F5 Pro 5.5-inch V2 Field Monitor 4K IPS DSLR HDMI Touchscreen Camera Assist 5V Type-C Input Tilt Arm
Product
A sleek, budget-friendly 5.5-inch IPS touchscreen field monitor designed for DSLR and mirrorless users. It delivers crisp Full HD (1920×1080) visuals, supports up to DCI‑4K HDMI input, offers flexible power options including USB‑C and Sony L‑Series battery, and comes with professional monitoring tools like 3D LUT support, histograms, focus peaking, and more—perfect for filmmakers on the move.
Key Features
Display & Image Support
-
5.5″ IPS touchscreen with 1920×1080 resolution, 1000:1 contrast, 500 cd/m² brightness, 160° viewing angle
-
Supports DCI 4K (24 fps) and UHD 4K (up to 30 fps) via HDMI, plus all standard 1080p, 720p, and SD formats
-
Compatible with Rec 709 color standard and real-time 3D LUTs—4 built-in, plus up to 32 user-uploadable via USB
Production & Monitoring Tools
-

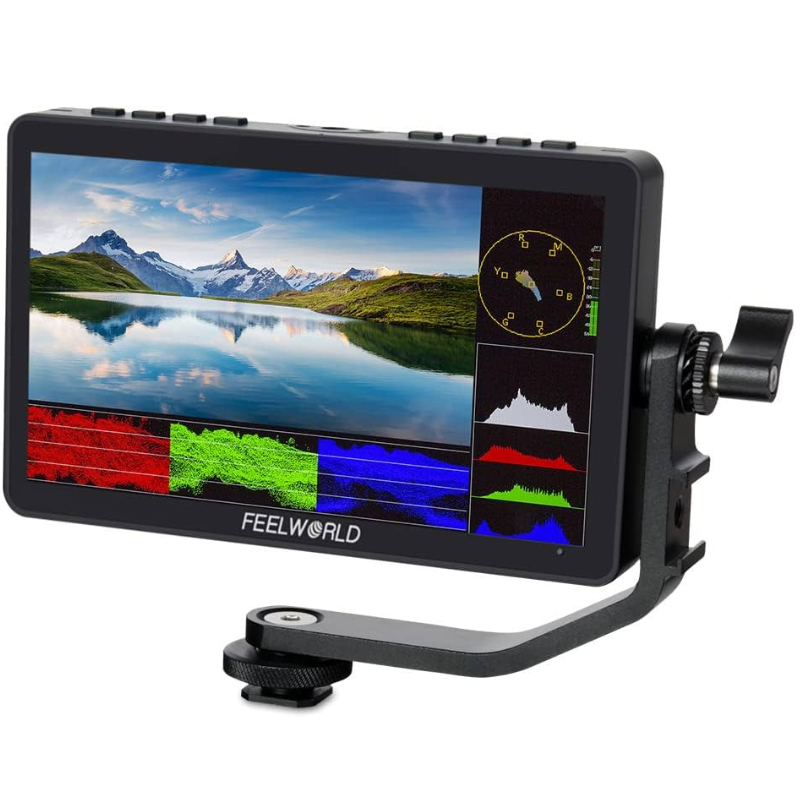

Advanced color and exposure aids: histogram, false color, zebra, peaking focus assist (RGB), check field, anamorphic de‑squeeze, over/undercan scan
-
Composition tools: screen markers, aspect ratio overlays, center safe areas, pixel-to-pixel zoom, nine-grid, image flip/freeze, zoom functions
Power & Connectivity
-
HDMI input + loop-through output; 3.5 mm headphone output for audio monitoring
-
Multiple power inputs: 12 V DC barrel, 5 V USB‑C (for power banks or phone adapters), Sony L-Series battery plate (NP‑F)
-
8.4 V DC output via barrel port to power connected cameras or accessories
Mounting & Physical Build
-
Ultralight at just 245 g (including battery plate), compact dimensions (~148 × 93 × 20 mm)
-
Multiple 1/4″‑20 mounting threads (top, bottom, right, rear) plus a shoe‑mounted tilt arm for versatile mounting and optimal viewing angles
-

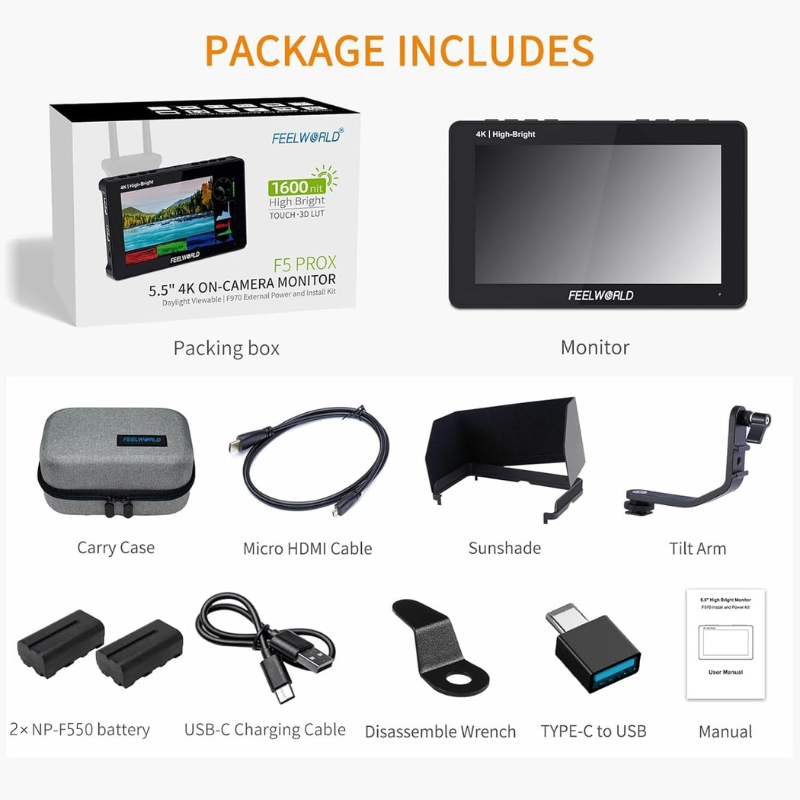

Rear bracket included for attaching wireless receivers or LED lights; sun hood provided for better outdoor visibility
Specifications Table
| Feature | Details |
|---|---|
| Display | 5.5″ IPS touchscreen, 1920×1080, 500 cd/m², 1000:1 contrast, 160° angle, Rec.709, LED backlight |
| Supported Formats | DCI 4K (24 fps), UHD 4K (30 fps), 1080p/i/i, 720p, SD via HDMI |
| LUT Support | 4 built-in Rec 709 LUTs + up to 32 USB-loaded user LUTs |
| Assist Tools | Histogram, peaking, false color, zebra, check field, scan, anamorphic, markers, flip, zoom, etc. |
| I/O Ports | HDMI In & Loop‑Out, 3.5 mm Headphone, 12 V DC input, USB‑C 5 V input, 8.4 V DC output |
| Power Options | 12 V DC, USB‑C (power bank), Sony NP-F battery plate |
| Mounting & Accessories | 4× 1/4″‑20 threads, tilt arm with shoe mount, rear bracket, sun hood, wrench |
| Dimensions & Weight | ~148×93×20 mm; weight ~245 g (with battery plate) |
| Power Consumption | Max ~9 W |
| Operating Range | -20 °C to +50 °C; storage -30 °C to +60 °C |
Summary
The FeelWorld F5 Pro V2 is a well-equipped, ultra-portable field monitor ideal for filmmakers using DSLRs, mirrorless cameras, or gimbals. It offers a sharp, daylight-viewable screen, touchscreen ease, professional tools like LUTs and exposure aids, versatile powering options, and a lightweight build—all at a competitive price.
